IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3x Flow Control and Back-pressure
IEEE 802.1p Class of Service (CoS)

´æ´¢×ª·¢½»»»»úÖÆ£¬Ö§³Ö2.0Gbps½»»»»ú¾ØÕó

1.49 Mega/s, 64 bytes
10Base-T: 14,880pps
100Base-TX:148,800pps
(pps: Packet/s)

64 bytes ~ 1522bytes (1522 bytes°üº¬VLAN Tag)

2K MACµØÖ·ÁÐ±í£¬×Ô¶¯Ñ§Ï°

448Kilo bits¹²Ïí·â°ü»º´æ

¸É¼ÌµçÆ÷±¨¾¯Êä³ö(0.5A /24V DC)

ĬÈÏÆô¶¯
Á÷Á¿·§Öµ: 200 packets/ Sec. @100Mbps; 20 packets/Sec. @ 10Mbps

Ìṩ2¸öת·¢ÓÅÏȼ¶: High Queue (4~7)£¬Low Queue (0~3)

ĬÈÏÆô¶¯£¬Ö§³ÖVLAN tagÓÅÏÈ£¬IPv4·â°üÓÅÏÈ

Ö§³Ö¶Ë¿Ú/µçÔ´Á¬½Ó״̬±¨¾¯; ͨ¹ý9pin²¦Â뿪¹ØÆô¶¯¸Ã¹¦ÄÜ

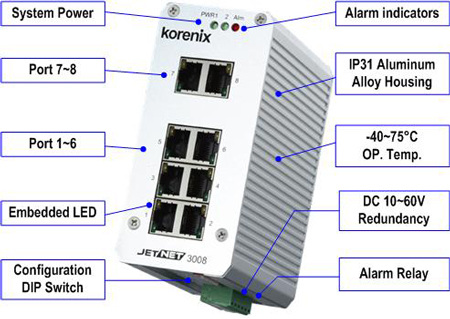

¿ìËÙÒÔÌ«Íø¿Ú: 8¸öRJ-45¶Ë¿Ú
¼ÌµçÆ÷±¨¾¯&µçÔ´ÊäÈë: 6-pin¿É²ðж½ÓÏ߶Ë×Ó

10Base-T: 2-pairs UTP/STP Cat. 3, 4, 5Ë«½ÊÏß, EIA/TIA-568B 100-ohm (100m)
100 Base-TX: 2-pairs UTP/STP Cat. 5Ë«½ÊÏß, EIA/TIA-568B 100-ohm (100m)

RJ-45¶Ë¿Ú: Link (Â̵ÆÁÁ) / Activity (Â̵ÆÉÁ˸), 100Mbps Link (»ÆµÆÁÁ)/ 10Mbps Link (»ÆµÆÃð)

2·ÈßÓàµçÔ´ÊäÈ룬֧³Ö¼«ÐÔ·´½Ó±£»¤
ÊäÈëµçѹ·¶Î§: DC 24V (10~60V)
µçÔ´ÀàÐÍ: Positive£¬NegativeµçÔ´

3.0 Watts / DC 24V ; ¿ª»ú˲¼äÊäÈëÀËÓ¿µçÁ÷:62.8A @ DC 60V

µ¼¹ì°²×°

ÂÁºÏ½ðÍâ¿ÇÂú×ãIP31¹¤Òµ·À»¤µÈ¼¶

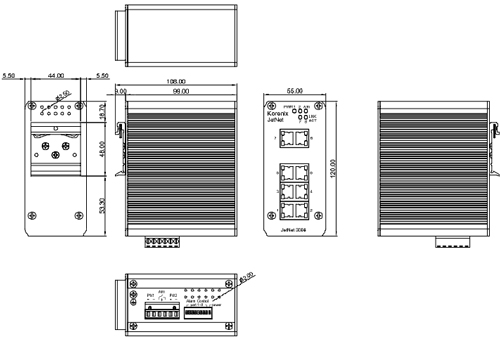

55(W) x 120(H) x 108(D) mm / º¬µ¼¹ì¼Ð
55(W) x 120(H) x 99(D) mm / ²»º¬µ¼¹ì¼Ð

0.555kg

-25~70¡ãC ( JetNet 3008)
-40~75¡ãC (JetNet 3008-w)

-40 ~ 85¡ãC

AC 1.5KV: ¶Ë¿Ú-¶Ë¿Ú/ ¶Ë¿Ú-Íâ¿Ç/¶Ë¿Ú-µçÔ´ , DC 1.5KV: µçÔ´-Íâ¿Ç

EMI:
CISPR 16-1-2/ 16-2-1/ 16-2-3 / 22
FCC Part 15 Subpart B Class A, ANSI C63.4
Öع¤Òµ±ê×¼IEC/EN61000-6-4
EMS:
Öع¤Òµ±ê×¼IEC/EN 61000-6-2
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

IEC 60068-2-32(º¬°ü×°)^Note-1
